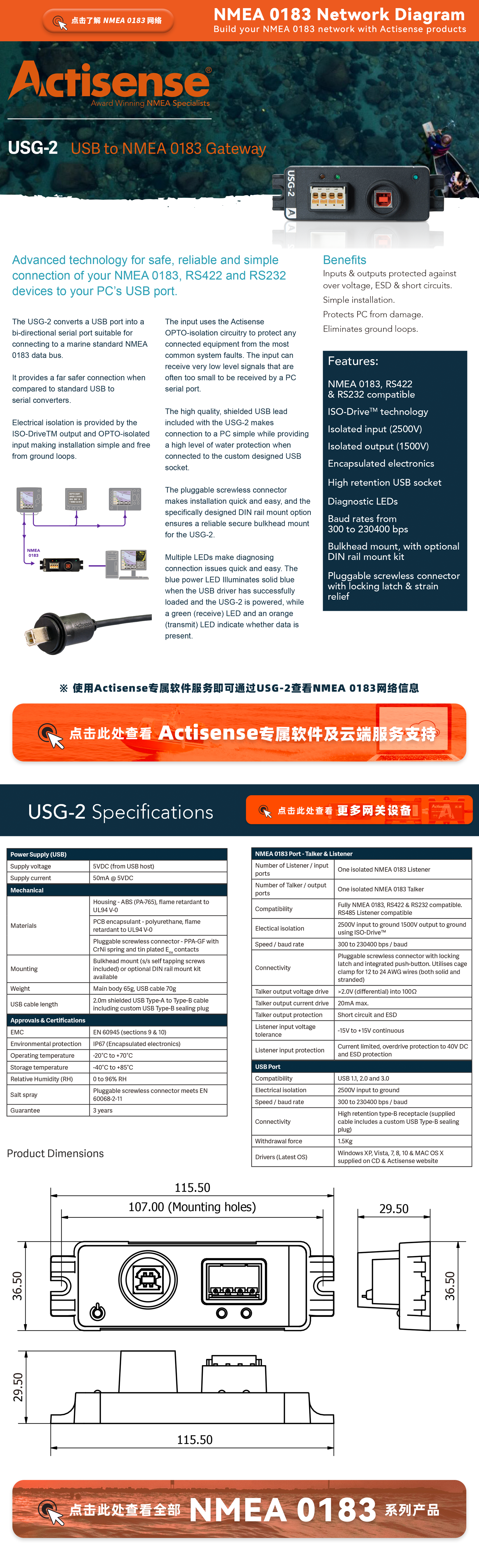

USB連通NMEA 0183雙向網關 | |||
輸入協議: | PC USB | 輸出協議: | NMEA 0183 |
協議轉換方向: | 雙向 | 數據存儲功能: | 無 |
RS232/ RS422接口: | 兼容 | RS485接口: | 接收端兼容 |
傳輸速度: | 300 to 230400 bps / baud | 供電要求: | USB主機端口 · 供應電壓-5V DC · 供應電流50mA @ 5V DC |
電氣隔離: | ·NMEA 0183接口 2500V input to ground, 1500V output to ground using ISO-Drive · USB接口 2500V input to ground |
診斷提示: | The blue power LED Illuminates solid blue when the USB driver has successfully loaded and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present. |
防護等級: | IP67 (Encapsulated electronics) | 工作溫度: | -20°C to +70°C |
環境溫度: | -40°C to +85°C | 環境濕度: | 0 - 96% RH |
質保年限: | 3年 | 性能特點: | · Encapsulated electronics · Installation simple and free from ground loops · The input can receive very low level signals that are often too small to be received by a PC serial port · High retention USB socket · The pluggable screwless connector makes installation quick and easy · Multiple LEDs make diagnosing connection issues quick and easy · Pluggable screwless connector with locking latch & strain relief |
-供應商聯系方式- | |||||
![]() |
公司名稱: | Active Research Ltd T/A Actisense |
![]() |
聯系人姓名: | Justin Cohen |
公司地址: | 21 Harwell Road, Poole, BH17 0GE, UK | 聯系人電話: | +44 01202746682 | ||
聯系人郵箱: | sales@actisense.com |
